SG-071-3 Socket End Resilient Gate Valve For PVC Pipe
    Publish time 2025-09-16 15:06
SG-071-3 Socket End Resilient Gate Valve For PVC Pipe

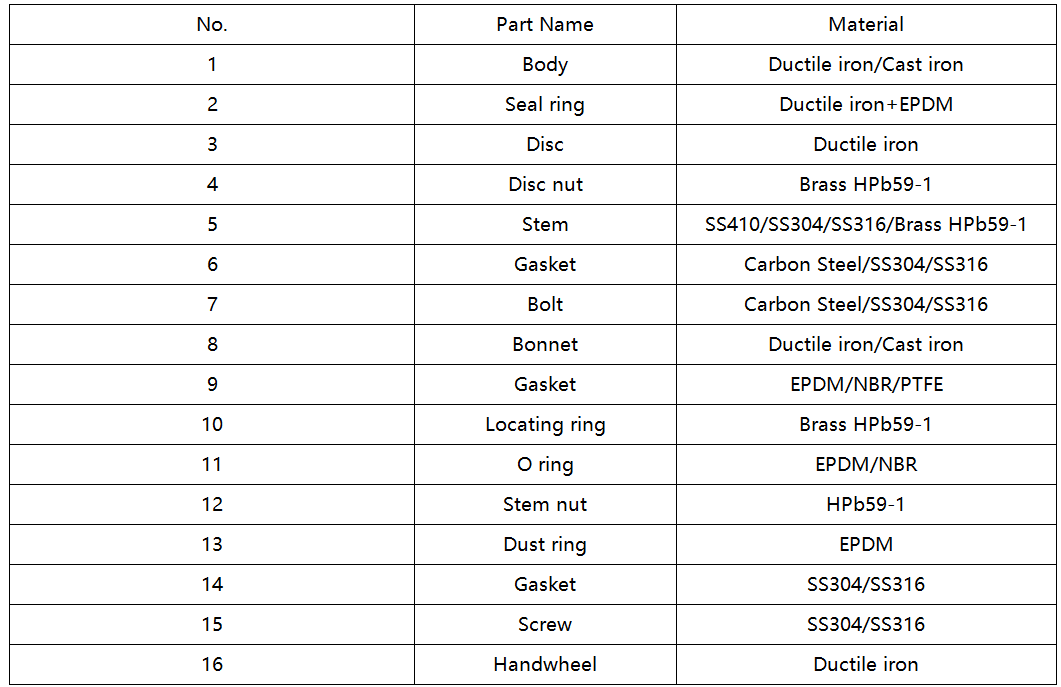

1、Materials：



2、Main technical parameters：

Nominal pressure：PN10/PN16

Face to face standard：DIN3202-F5

Test standard：DIN3230

Applicable media：water

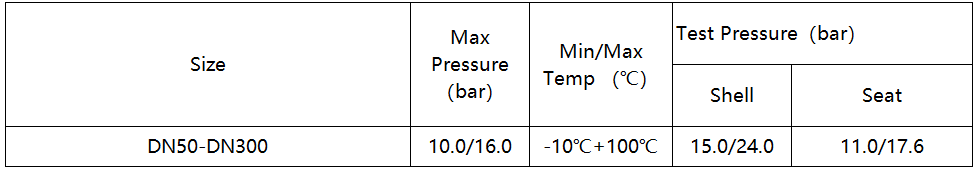

3、Maximum pressure conditions：

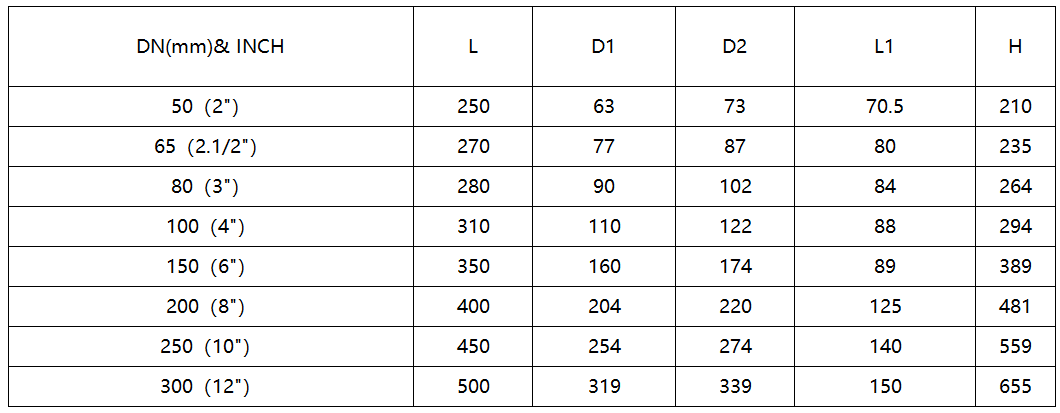

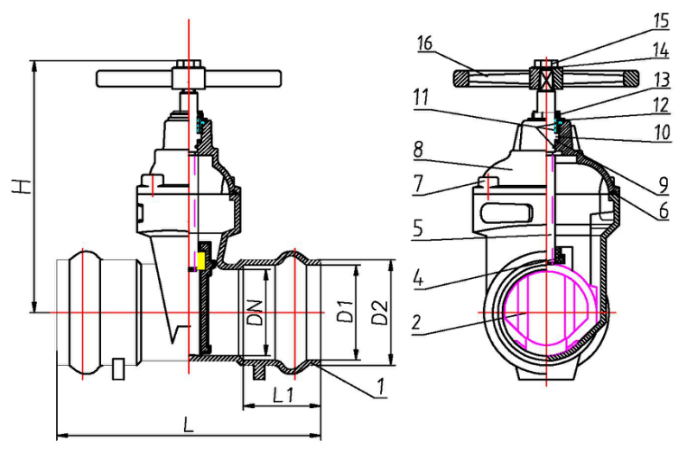

4、Dimensions：
