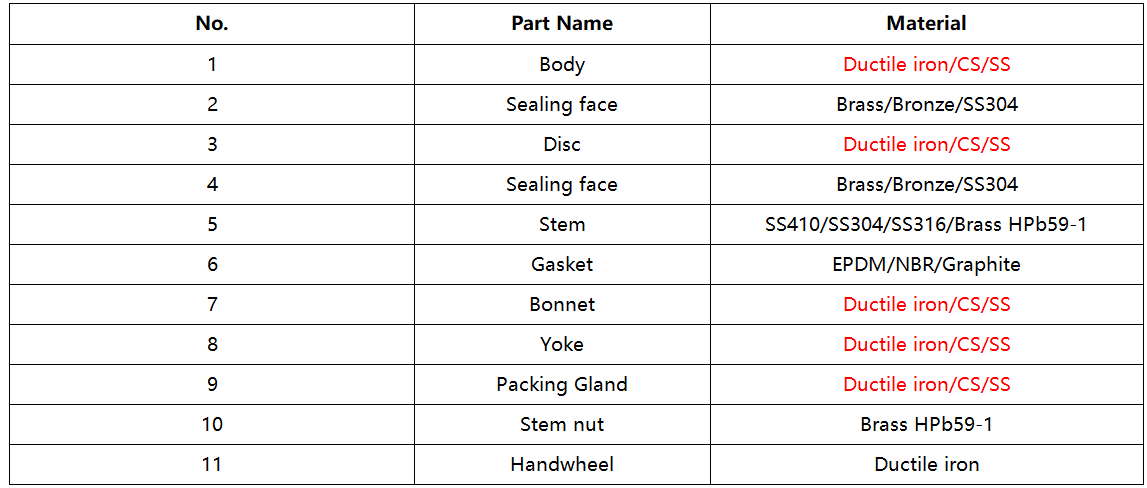

1、Materials：

2、Main technical parameters：

Nominal pressure：PN10/PN16/PN25/PN40/PN64、125LB/150LB/300LB、5K/10K/16K

Face to face standard：GB/T12221-2005，ASME B16.10,DIN3352 F4/F5，EN558-1，JIS B2002

Flange connection standard：GB/T17241.6，GB/T9113-2010，EN1092-2，ANSI B16.1/B16.5，JIS B2212

Test standard：GB/T13927-2008，API598

Applicable media：water, oil, gas, etc

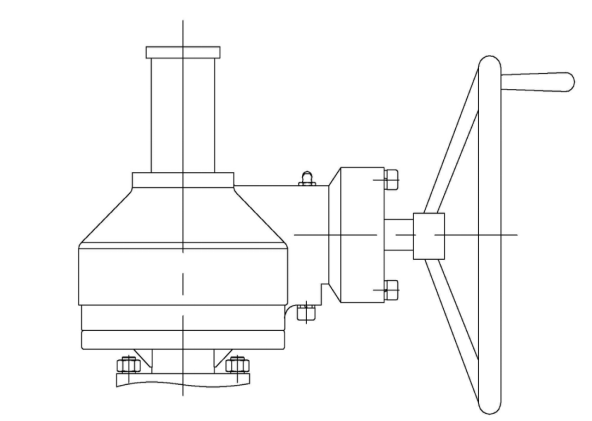

Available With gear, electric Operator, etc.

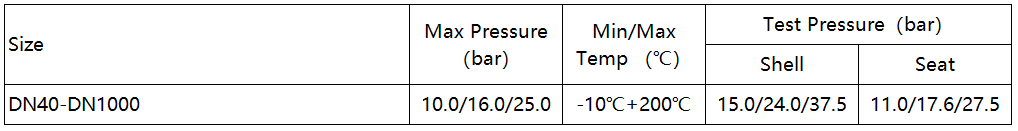

3、Maximum pressure conditions：

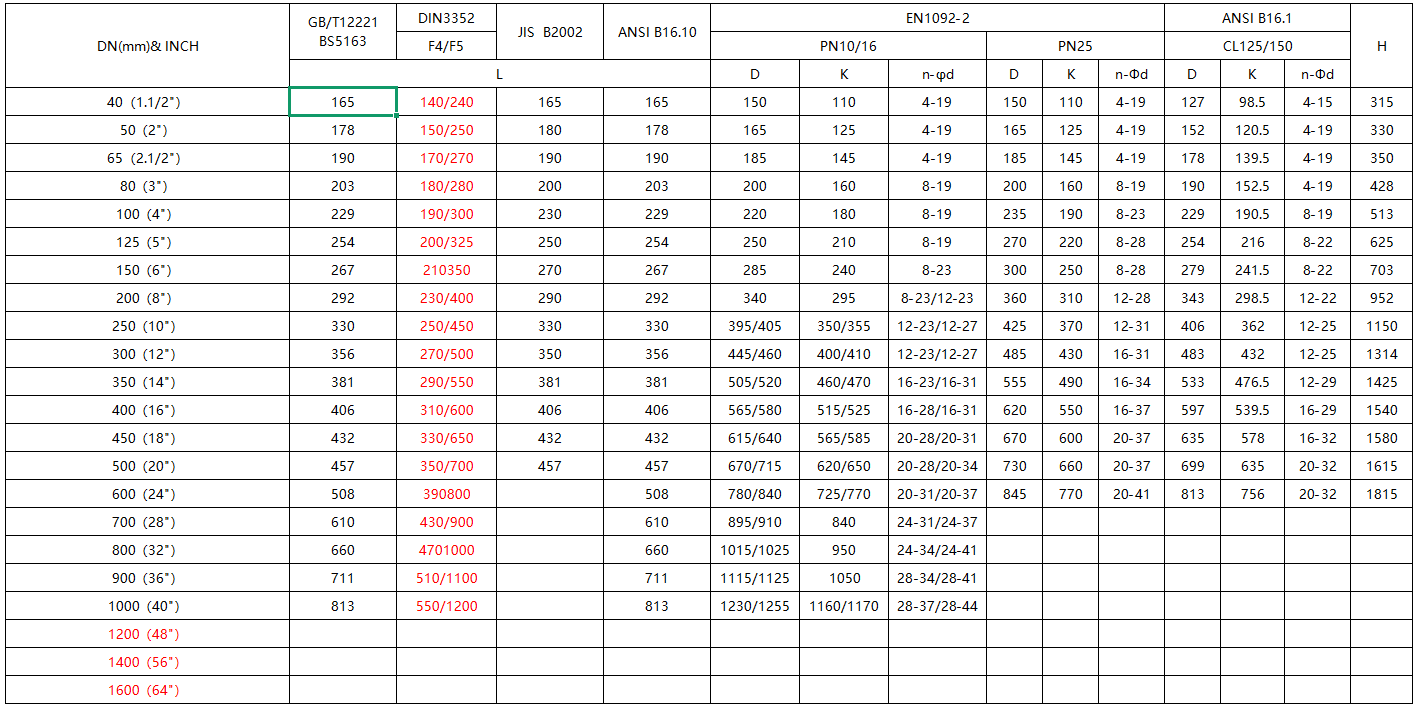

4、Dimensions：
