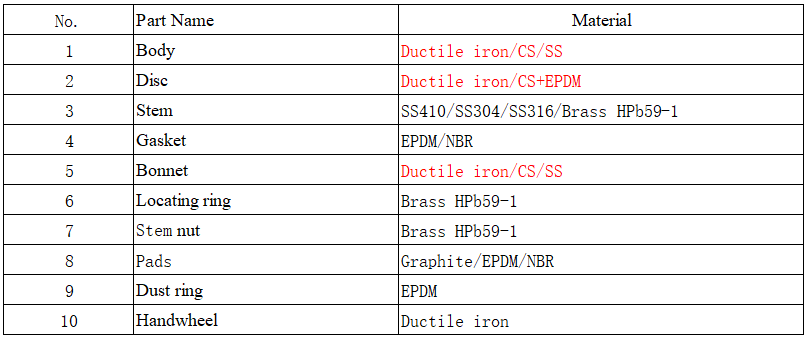

1、Materials：

2、Main technical parameter：

Nominal pressure：PN10/PN16/PN25/PN40/PN64、125LB/150LB/300LB

Face to face standard：GB/T12221-2005，ANSI B16.10,DIN3352 F4/F5，EN558-1

Flange connection standard：GB/T17241.6，GB/T9113-2010，EN1092-2，ANSI B16.1/B16.5

Test standard：GB/T13927-2008，API598

Applicable media： water, oil, gas, etc

Note: It is possible to install the four corners for embedding

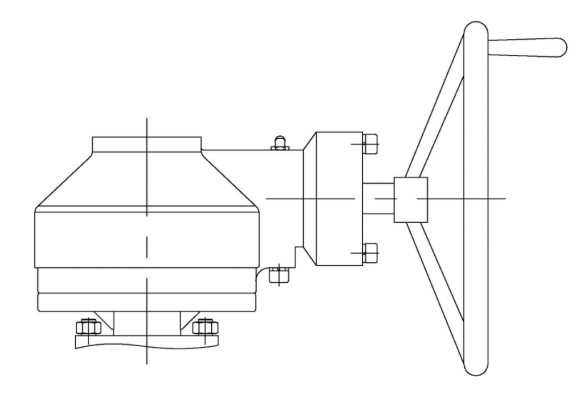

Available With gear, electric Operator, etc.

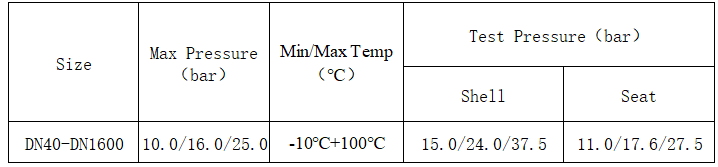

3、Maximum pressure conditions：

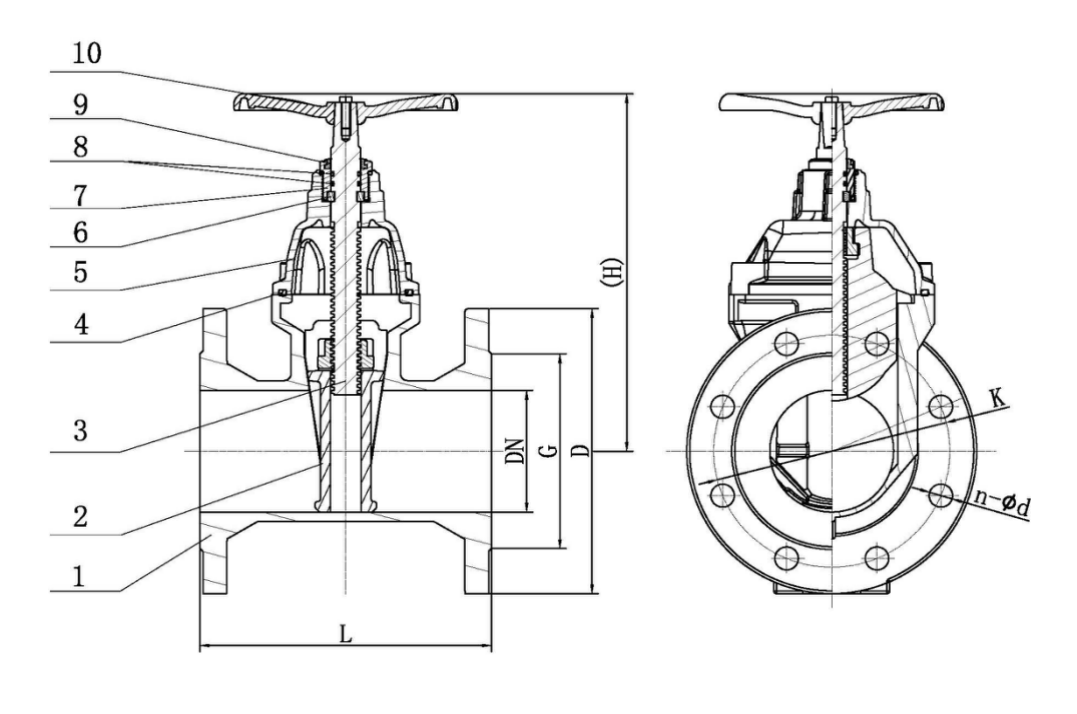

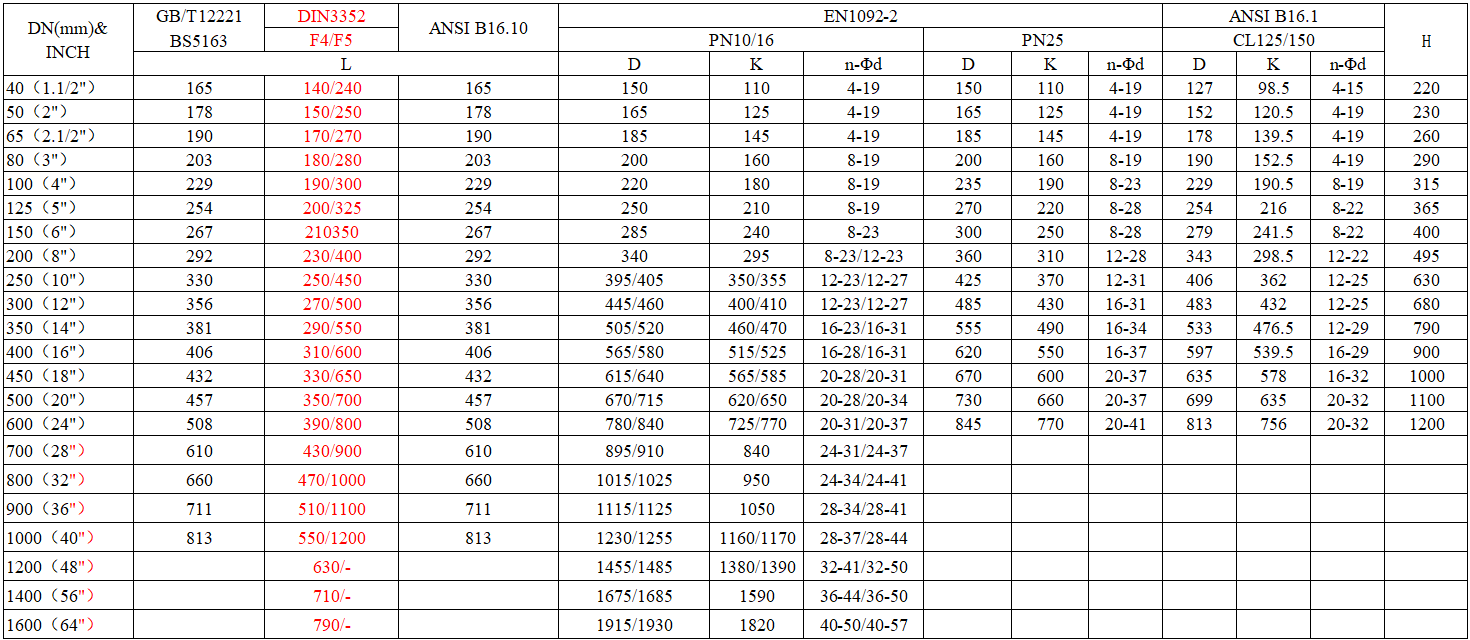

4、 Dimensions：
